REST architects still rely on its proven simplicity and wide language support, so why toss it aside when we can give it AI superpowers through AI API Interfaces? Imagine maintaining the same stateless CRUD style you know and love, while incorporating AI-specific query flags and intelligent metadata. How might you tweak your next API to stay true to REST while also handling AI tasks with the help of AI API Interfaces?
Stateless CRUD over HTTP remains the gold standard for dependable, cross-platform data services. Look at APILayer’s Fixer for exchange rates, IPstack for geolocation, or Marketstack for financial data, they all serve up JSON based endpoints that any client can hit without fuss. REST shines thanks to its uniform interface, resource-driven design, and built-in caching, but out of the box it wasn’t built for streaming AI outputs, detailed model info, or batched inference workflows.
Table of Contents
Key Takeaways
- Extend REST with AI Flags: Add optional query parameters like ?explain=true and metadata headers (X-Model-Version, X-Model-Perf) so that clients can ask for model details and explainability data without breaking any existing endpoints.
- Return Embeddings Alongside Data: To help downstream AI systems with semantic search and similarity tasks, add numeric vectors to a separate embeddings field that can be changed through request parameters.
- Adopt Clear Versioning: Use semantic versioning with URI paths (like /v1/ and /v2/) for breaking changes and small bumps for new optional features. Publish deprecation notices to keep AI Agents stable as APIs change.
- Implement Pagination & Shaping: Use limit and offset to control the size of results and field-level filtering to limit payloads. This makes sure that Large Language Models only get the data they need for Real Time inference.
- Provide Structured Errors & Retry Signals: Return standard HTTP status codes and JSON error objects that are always the same (code, message, retryable) so that clients and MCP servers can automatically fix or retry failed calls.
- Use Hypermedia Links for Discoverability: Add a _links object (self, next, prev, related actions) so that AI Agents can move around resources and inference endpoints on their own, which cuts down on the need for documentation that isn’t part of the system.
Today’s apps expect more: semantic searches, explainability tags, live inference streams features that go well beyond simple CRUD. Embedding vectors, model version metadata, and explainability reports demand richer payloads and protocols than vanilla REST can handle. With a few thoughtful tweaks like embedding metadata sections or using hypermedia controls we can evolve REST into an AI-friendly protocol without losing its original charm.
Try adding:
- Semantic Embedding Queries: Send your embedding vectors with the request, and you’ll get back the results that are the closest match.
- Streaming Inference Pipelines: Use HTTP/2 server push or chunked transfer encoding to send model outputs live so that clients get answers as they are made.
- Metadata Blocks: Add JSON-LD snippets that keep track of model versions, where the data came from, and how easy it is to explain.
In this post, we will be looking at Building AI API Interfaces in 2025, From REST to AI-Optimized Design with APILayer.
Building on Reliable REST Foundations
Core Data APIs at APILayer

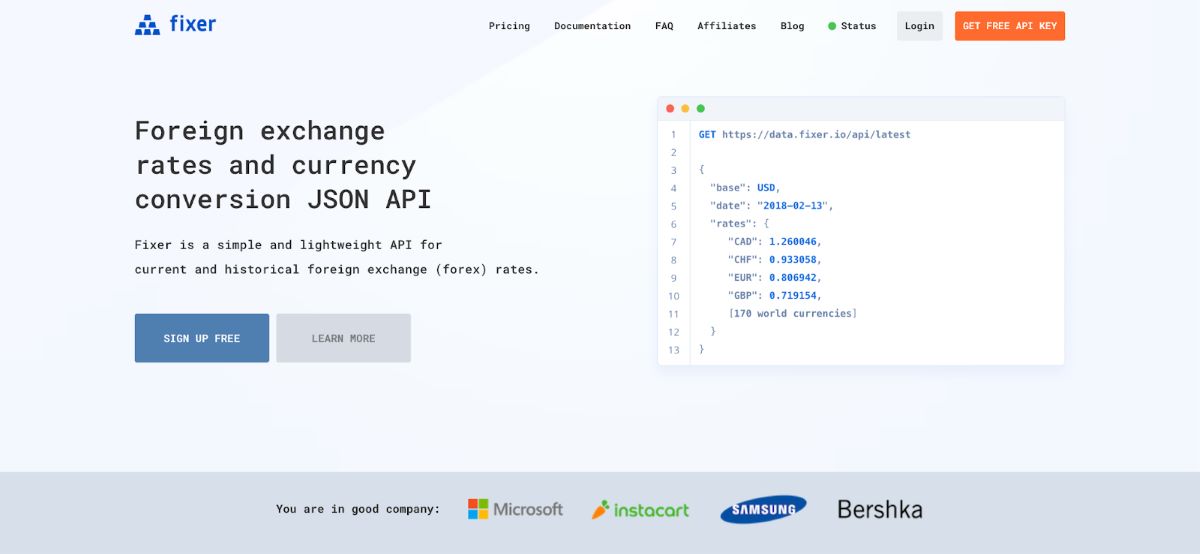

1. Fixer API: Real-time, multi-source exchange rates with time-series endpoints
Fixer API offers up-to-the-minute exchange rates for 170 currencies, pulling data from over 15 trusted sources every minute. Just hit the /latest endpoint and set your base and symbols parameters to get the conversions you need. If you’re tracking trends, the /timeseries endpoint delivers daily rates for any two dates (up to a year apart), automatically rolling weekend values to the last trading day. Responses come back as lightweight JSON, so you get fast, low-overhead payloads you can parse in a snap.
Example: Latest Rates Request
https://data.fixer.io/api/latest
? access_key = API_KEY
& base = USD
& symbols = GBP,JPY,EUR

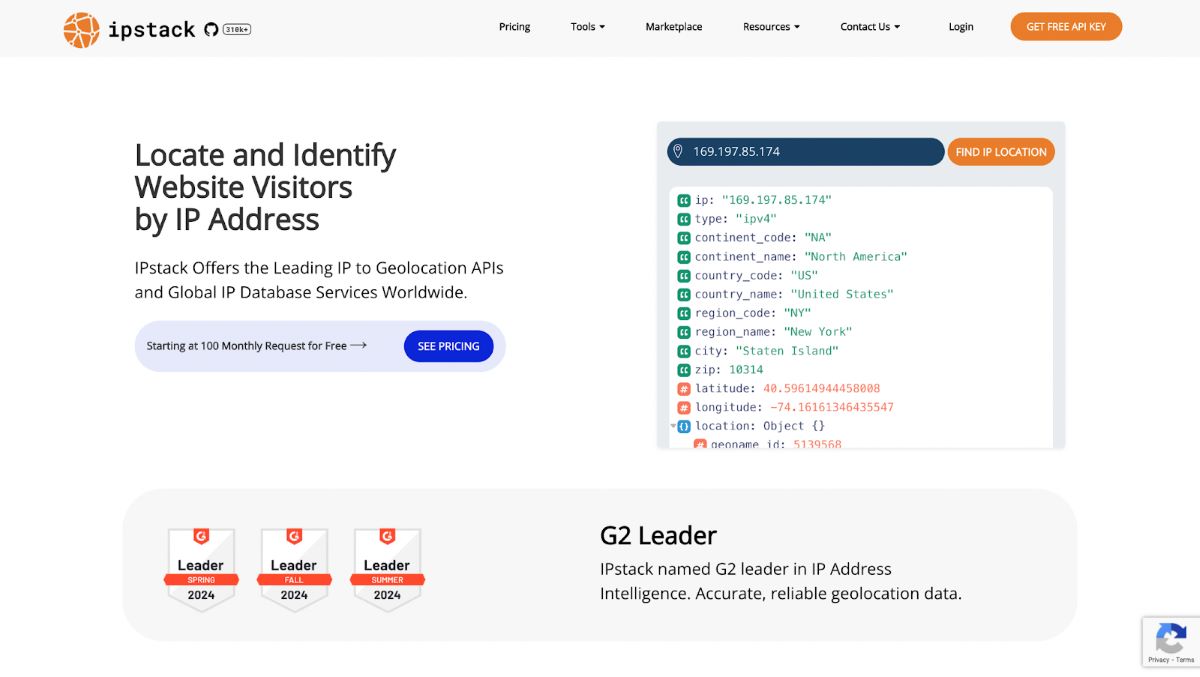

IPstack turns any IPv4 or IPv6 address into rich location info continent, country, region, city, ZIP code, latitude, and longitude with a single GET request. By default, you’ll see fields like continent_name, country_name, region_name, city, zip, latitude, and longitude in JSON, perfect for personalization, fraud checks, or compliance. Need XML? Just append &output=xml, though JSON usually remains the speediest option. For bulk needs, IPstack supports batch lookups and even auto-detects the caller’s IP with its “requester lookup” endpoint.
Example: IP Lookup Request
https://api.ipstack.com/134.201.250.155
? access_key = YOUR_ACCESS_KEY

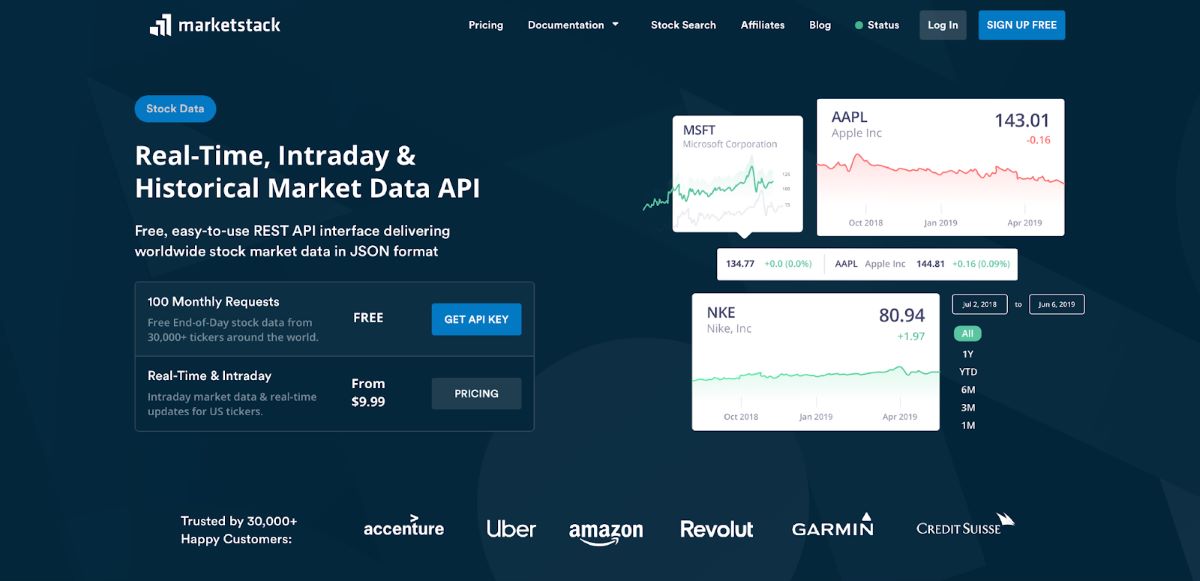

Marketstack gives you real-time, intraday, and historical stock data for more than 30,000 tickers across 70+ exchanges all via JSON-based REST calls. The /eod endpoint returns end-of-day prices plus a pagination block for browsing large result sets, with each record showing date, symbol, and price. If you’re on a professional plan, tap the /intraday endpoint for feeds as frequent as every minute; basic and free tiers default to 15-minute intervals. Beyond stocks, Marketstack also delivers commodity prices, company ratings, and split data under the same consistent JSON schema.
Example: End-of-Day Data Request
https://api.marketstack.com/v2/eod
? access_key = YOUR_ACCESS_KEY
& symbols = AAPL
Best Practices for High-Throughput REST
Every millisecond and byte counts when you’re making high-throughput REST services for AI agents or real-time LLM pipelines on MCP servers. Lean designs with minimal payloads and fast protocols keep your systems responsive and ready for heavy AI workloads.
Cut endpoints down to the basics
Use sparse fieldsets or query parameters to filter out extra data and only show clients the fields they need. By default, APILayer’s JSON APIs are slim, which means that your clients can parse them quickly and spend less time serializing.
Move bulky tasks off the main thread
For work like mass currency conversions, hand tasks off to background workers or a message queue. Reply immediately with a 202 Accepted and a job ID, then let webhooks or callbacks ping your service when the work wraps up keeping your real-time flows unblocked.
Stream over HTTP/2 or gRPC
Use HTTP/2’s multiplexing and header compression to push LLM inference results without spinning up new connections for each request. Or run gRPC on your MCP servers to enable full-duplex streams, smooth flow control, and lightning-fast serialization.
Batch lookups with IPstack’s bulk API
Bundle dozens or hundreds of IP addresses into a single /bulk call. This slash-headed round trips and slashes latency so your AI agents can scale without hitting network bottlenecks.
Designing AI-Ready API Interfaces
AI-specific features like explainability flags, response embeddings, and hypermedia controls can be added to REST’s consistent interface. This will make it easier for AI systems to work together with AI Agents and Large Language Models.
Metadata-Augmented Endpoints
REST endpoints can return rich model metadata without affecting clients that are already using them.
Clients can ask for SHAP or LIME output in addition to predictions by adding query flags like ?explain=true.
To show the version, training date, and important performance metrics, add a metadata JSON block or specific headers (X-Model-Version, X-Model-Hash, X-Model-Date, X-Model-Perf).
Clients who don’t use these extensions still get regular JSON payloads, which keeps the stateless CRUD semantics.
- When you set explain=true, a metadata.explanations array will be created with SHAP or LIME feature attributions.
- Clients can log provenance by looking at the response headers, which show X-Model-Version: 2025.06.01 and X-Model-Perf: latency=20ms, acc=92.3%.
Response Embeddings & Semantic Outputs
APIs can send back embedding vectors and fields that users can read so that semantic search and similarity scoring will be easier in the future.
You can choose the embedding service and dimensionality they need by adding ?embed_model=gemini-embedding-exp-03-07&dims=768 to the end of the URL.
You can keep arrays for embedding next to text fields or in a separate key for embeddings. This makes it easier for Vector DBs or LLM retrieval pipelines to read them.
This method keeps tight Real Time inference loops by letting AI Agents get both the full content and its number in one call.
- embeddings: [0.12, -0.03, …] next to text: “The quick brown fox…”
- You can use the ?model=azure-embeddings-text-ada-002 to be able to change. the ability to work with more than one embedding model.
API Versioning Strategies
Semantic versioning lets you show both small changes (v1.1.0) for new optional fields and big changes (v1.0.0 → v2.0.0) in models or response schemas.
URI path versioning (/v1/resource vs. /v2/resource) makes things clear right away, just like Marketstack’s /v1/ and /v2/ APIs.
Header-based versioning (Api-Version: 2) keeps URLs clean and works with HATEOAS links that may have their own headers.
Commit to supporting at least two older versions (N+2) and include changelogs and deprecation notices in your API documentation.
By testing against minor releases and pinning to major versions for stability, developers can easily move their AI Agents to new versions.
- URI Versioning: The API version is easy to see at /api/v2/predict.
- Header versioning: Accept: version=2; application/vnd.api+json keeps the paths to resources and the version information separate.
Pagination & Response Shaping
Use the limit and offset parameters to set the size of each page and keep an eye on the number of tokens when sending results to LLM prompts.
Give clients the ability to filter at the field level (fields=id,name,vector) so they can get rid of data they don’t need before serialization. This saves bandwidth in Real Time AI loops.
Set a max_limit and appropriate default limits (like limit=25) to keep MCP Servers from getting too busy.
To make semantic retrieval work better, let clients ask for subsets that are sorted or filtered (?status=active&sort=updated_at).
GET /items?limit=50&offset=100&fields=id,embeddings
Clear Error Codes & Self-Correction
Give structured error objects that have a message a code, and a retryable flag that says the error can be tried again. This lets clients change their inputs automatically or try again.
Example:
{
"code": 422,
"message": "Invalid API key",
"retryable": false,
"timestamp": "2025-06-27T10:00:00+05:30"
}
When HTTP status codes are used correctly, 400 means “wrong input,” 401 means “authentication,” 403 means “prohibition,” and 429 means “rate limits.” helps AI systems learn how to handle mistakes. Baeldung.com
For MCP Servers to match logs and get troubleshooting documents, errors need to have a request_id and an optional help_url.
- Retryable: true , when there are short failures, true tells agents to back off and try again.
HATEOAS for Discoverability
Add self, next, prev, and related actions to a _links object so that clients can move around resources without having to follow hard-coded paths.
"_links": {
"self": { "href": "/orders?page=1" },
"next": { "href": "/orders?page=2" },
"prev": { "href": "/orders?page=0" },
"predict": { "href": "/orders/predict", "method": "POST" }
}
HATEOAS makes it easy for AI agents to find streaming controls, metadata endpoints, and inference endpoints.
AI systems can work with new endpoints without changing their code by putting each action and its HTTP method in the links.
Marketstack Intraday Data API Request/Response
const express = require('express')
const app = express()
const port = 3000
require('dotenv').config()
{
"pagination": {
"limit": 100,
"offset": 0,
"count": 100,
"total": 5000
},
"data": [
{
"open": 228.45,
"high": 229.53,
"low": 227.3,
"mid": 227.28,
"last_size": 6,
"bid_size": 120.0,
"bid_price": 227.02,
"ask_price": 227.54,
"ask_size": 100.0,
"last": 227.54,
"close": 227.52,
"volume": 311345.0,
"marketstack_last": 227.28,
"date": "2024-09-27T16:00:00+0000",
"symbol": "AAPL",
"exchange": "IEXG"
},
[...]
]
}
Metadata block (limit, offset, count, total) sets limits on result sets for downstream Sizing of LLM prompts
Clients can page through large intraday streams without putting too much strain on MCP Servers, which keeps Real Time throughput steady.
All data, even nested arrays, is sent in pure JSON, which makes it easier to parse for Vector DB ingestion or LLM context windows.
Conclusion
Start by treating your REST API like Lego bricks, just snap in AI micro-services as modular pieces without having to create new protocols. You can change the major version of an API when you make big changes to an AI model and the minor version when you add new optional fields. This keeps clients stable while you make improvements.
Use APILayer’s core data APIs with your AI extensions to create rich, data-driven experiences. Fixer gives you real-time and time-series exchange rates with small JSON payloads. IPstack lets you look up multiple IP addresses to cut down on bandwidth. Marketstack’s intraday and historical endpoints give you market data down to the minute, with built-in pagination and idempotent GET semantics. To protect your interfaces from the fast evolution of AI, use pagination, response shaping, clear error semantics, lightweight HATEOAS cues, metadata flags, and semantic versioning.
FAQs
What is an AI-optimized REST API?
An AI-optimized REST API layers on optional query flags for explainability and embeds model metadata (version, performance) alongside standard JSON payloads to support AI Agents and Large Language Models without changing core endpoints.
How can I request explainability in my API calls?
By adding a flag like ?explain=true, your endpoint returns SHAP or LIME attributions in a metadata.explanations block without altering the default response structure.
How do I return embeddings for semantic tasks?
Include dense vector embeddings in a dedicated embeddings field configurable via ?embed_model= and ?dims= parameters to drive downstream semantic search and similarity scoring.
Which versioning strategy keeps AI Systems stable?
Use semantic versioning with URI paths (e.g., /v1/, /v2/) for breaking model or schema changes and minor releases for new optional features, while publishing changelogs and deprecation notices
What core APIs does APILayer provide for AI-driven applications?
APILayer offers high-performance data APIs like Fixer for real-time and time-series exchange rates, IPstack for global IP-to-location lookups, and Marketstack for intraday and historical market data each optimized for JSON parsing and low latency
